FTTH Olt Optical Olt Gpon Epon FTTH Olt Epon 8 Ports

                              Ftth olt fiber optic  olt gpon epon  FTTH olt epon 8 port Product DescriptionProduct ParametersItem4 PON Ports OLT8 PON Ports OLTChassisRack1U 19 inch standard box1U 19 inch standard boxSlotsNANAUplink PortQTY8

Featured Products

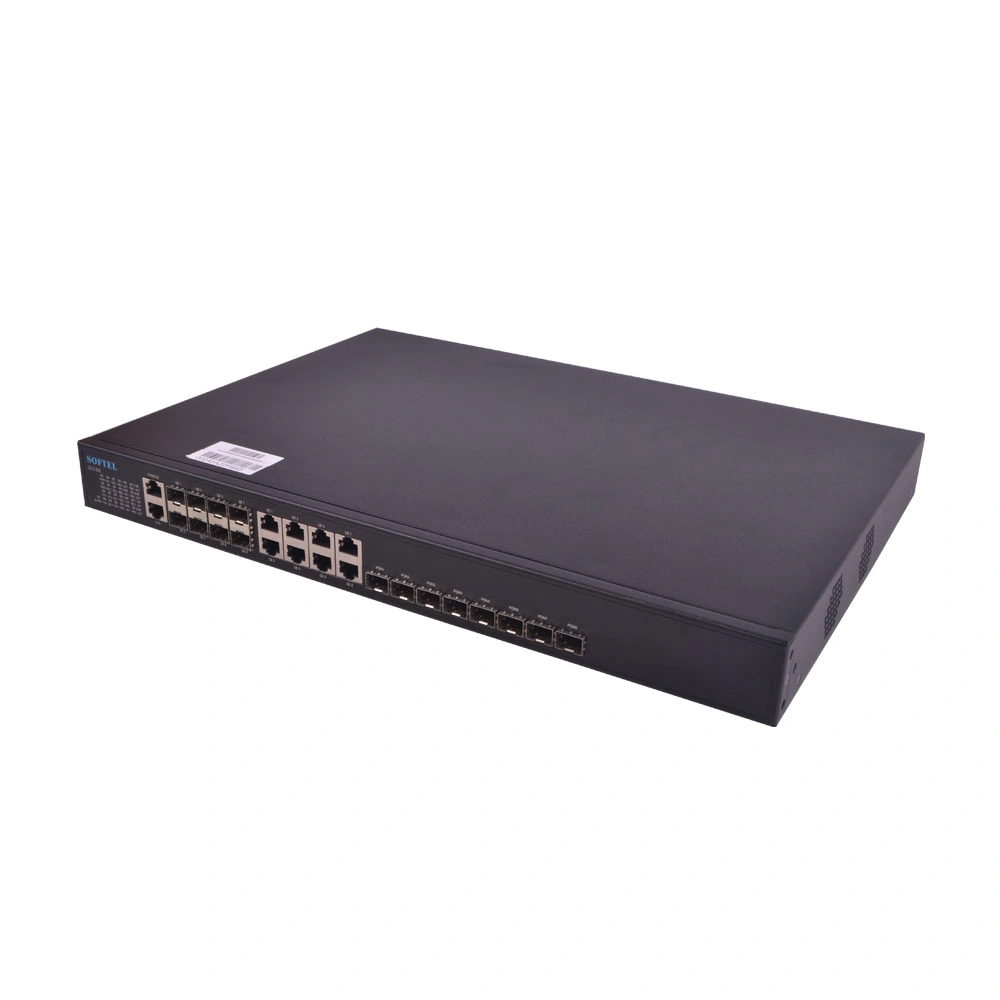

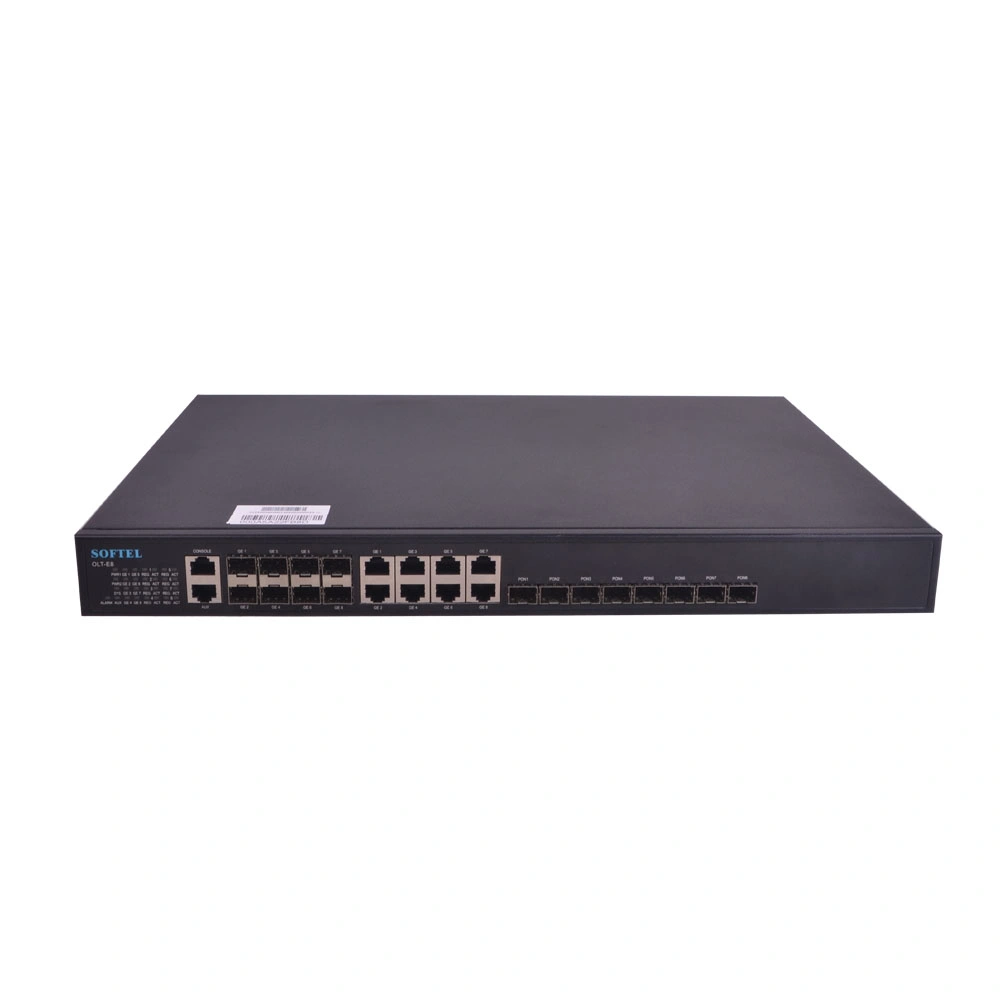

                              Ftth olt fiber optic  olt gpon epon  FTTH olt epon 8 port


Product Description

FTTH Olt Fiber Optic Olt Gpon Epon FTTH Olt Epon 8 PortFTTH Olt Fiber Optic Olt Gpon Epon FTTH Olt Epon 8 PortFTTH Olt Fiber Optic Olt Gpon Epon FTTH Olt Epon 8 Port

Product Parameters
Item
4 PON Ports OLT
8 PON Ports OLT
Chassis
Rack
1U 19 inch standard box
1U 19 inch standard box
Slots
NA
NA
Uplink Port
QTY
8
16
Copper
10/100/1000M auto-negotiable, RJ45:8pcs
10/100/1000M auto-negotiable,RJ45:8pcs
SFP
4 SFP slots(Combo)
8 SFP slots(Combo)
PON Port
QTY
4
8
Physical Interface
SFP Slots
SFP Slots
Connector Type
1000BASE-PX20+
1000BASE-PX20+
Max splitting ratio
1:64
1:64
Management Ports
1*100BASE-TX outband port
1 CONSOLE port
PON Port Specification
(Apply to PON Module)
Transmission Distance
20KM
PON port speed
Symmetrical 1.25Gbps
Wavelength
1490nm TX,1310nm RX
Connector
SC/PC
Fiber Type
9/125μm SMF
TX Power
+2~+7dBm
Rx Sensitivity
-27dBm
Saturation Optical Power
-6dBm
Management Mode
SNMP,Telnet,CLI management mode.
Management Function
Fan Group Detecting
Port Status monitoring and configuration management;
Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;
EPON management function: DBA ,ONU authorization, ACL, QOS ,etc;
Online ONU configuration and management
User management
Alarm management
Layer-two Switch
Support port VLan and protocol Vlan
Support Vlan tag/Untag ,vlan transparent transmission;
Support 4096 VLAN
Support 802.3dd trunk
RSTP
QOS based on port ,VID,TOS and MAC address
IGMP Snooping
802.x flow control
Port stability statistic and monitoring
EPON Function
Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data encryption, group broadcasting, port Vlan separation , RSTP, etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS
by means of different LLID channels.
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support dynamic distance calculation on EMS online
Support RSTP,IGMP Proxy
Dimension
442mm(L)*315mm(W)*44mm(H)
Weight
4.2kg
4.5kg
Power Supply
220VAC
AC: 90V~240V,47/63Hz
-48DC
DC:-36V~-72V
Power Consumption
45W
48W
Operating Environment
Working Temperature
0~50ºC
Storage Temperature
-40~85ºC
Relative Humidity
5~90%(non-condensing)
Company Profile

FTTH Olt Fiber Optic Olt Gpon Epon FTTH Olt Epon 8 Port

Packaging & Shipping

FTTH Olt Fiber Optic Olt Gpon Epon FTTH Olt Epon 8 Port

FAQ

1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.

2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.

3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS and so on, while the goods have high weight and volume, we suggest using air or sea shipment.

4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.

5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. How about the Warranty?
There are 12 months for the warranty.While the warranty is not responsible for those broken by violence or updated with other brands.
