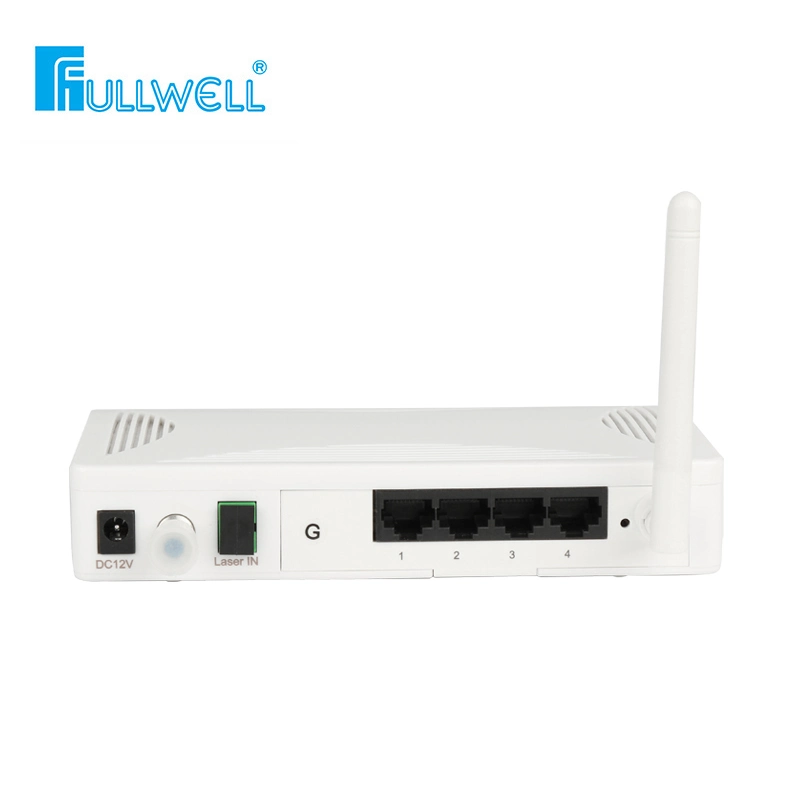

FWE-HGU8040WC
FTTH optical network terminal box is the combination of ONU and CATV optical receiver. FTTH is the ultimate evolution objective of information media connection. For catering to this objective, FTTH optical network unit box is then created as a terminal device. This device adopts a technical project of high-performance ONU chip and low power optical receiving, which satisfies the requirement of FTTH. Plug-in type optical network module unit has four 10/100 Mbps ports or with WIFI function, CATV optical receiver has one RF port with 82dBuv constant output. Moreover, the device has an operating condition indicator on the panel, CATV optical receiving indicator, and RF output level indicator. Overall, it has features of convenience, simplicity, reliability and etc.
Main Technical Parameter
| ITEMS | UNIT | FWE-HGU8040WC |
| CATV Wavelength | nm | 1540~1565 |
| ONU Wavelength | nm | 1310,1490 |
| CATV Responsive | A/W | ≥0.9 |
| CATV Power Range | dBm | -2~-18 |
| CATV Return Loss | dB | ≥50 |
| ONU Receive Sensitivity | dBm | ≥-28.5(EPON) |
| ONU Transmit Power | dBm | -1~4(EPON) |
| Linker | / | TV:SC/APC,PON:SC/UPC |
| Bandwidth/Flatness | MHz/dB | 47~1000/≤ ±1 |
| Output Level | dBuv | 82±1(-5~-15dBm) |
| Reflection Loss | dB | ≥16(Resistance 75Ω) |
| RF Output Port | Metric or British System(one-way output) | |
| CNR/MER | dB | ≥45/35(-9dBm receive,PAL-D 59CH,OMI3.8%) |
| CTB/CSO/HUM | dB | ≥70/≥66/≥60(-6dBm receive, nominal output) |
| Ethernet Ports | No. | 4(10/100Mbps) |
| WIFI | No. | 1 / 1 |
| Power Supply/Consumption | V/W | External AV155~255V→DC12/5 |
| Working/Storage Temp | ºC | -25~50/-35~75(Humidity 8~80%) |
| Size | mm | 164×115×30 |
1. What are your terms of payment?
Usually, we can accept T/T, PayPal, and Western Union. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there is a stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.
3. How about the shipping?
Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.
4. How can I place an order?
(1) The agreement is achieved on the product price and product specifications.
(2) We make a proforma invoice for your confirmation.
(3) When you agree on the proforma invoice, you make the payment.
(4) We deliver the goods after we receive your payment.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging, and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem with the goods, we will help to solve the problem or provide replacement of the goods.
