Two 10/100/1000M Outdoor EOC Master CATV
Summary

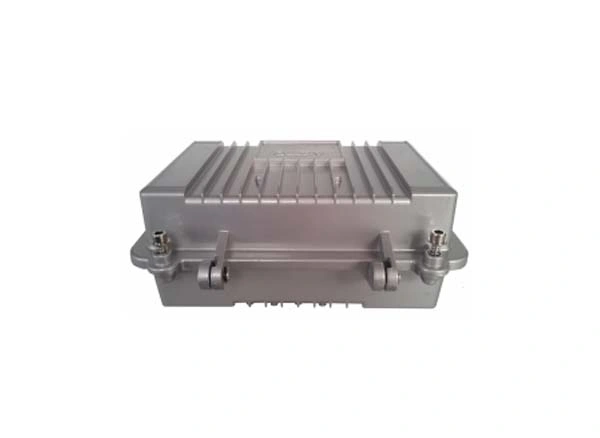

7102 is the outdoor EOC Master of the EOC (Ethernet Over Coaxial) solution. It is in compliant with HomePlug AV standard. The 7102N have one EOC module. It provide two TV input, two CABLE output and two 10/100/1000M auto-negotiation uplink ports. It offers the high-speed data service to the customer based on the coaxial cable network.
Features
Specification
7102 is the outdoor EOC Master of the EOC (Ethernet Over Coaxial) solution. It is in compliant with HomePlug AV standard. The 7102N have one EOC module. It provide two TV input, two CABLE output and two 10/100/1000M auto-negotiation uplink ports. It offers the high-speed data service to the customer based on the coaxial cable network.
Features
HomePlug AV solution, based the Qualcomm AR7410 chipset.
Modularized design, easy for maintain
Aluminum alloy die casting shaping, good heat dissipation
Outdoor waterproof designed, 60V/220V power supply optional
7.5-65Mhz frequency for EOC signals., no influence on CATV Service
PHY Layer speed 600Mbps, MAC Layer throughput up to 320Mpbs
Support bi-direction data encryption
Support broadcast storm limitation
Support data packet statistics
Support auto-update and auto-configuration
Support WEB,CLI,SNMP based network management
Support On-line upgrading
Specification
| Item | Parameters | Specification |
| Interface and LEDIndicator | RF Port | 1*EOC low-frequency signal output port, support F- Female or SMB connector |
| Ethernet Port | Two 10/100/1000M Auto-negotiation RJ45 ports | |
| LED Indicator | 1 for Power Supply Status 1 CABLE Link Status indicator 2 for Ethernet Ports Status | |
| PerformanceParameters | RF Parameters | Frequency Band :7.5-65MHz RF Output Level:115±5dBuv Receive sensitivity: 45dBuv Return Loss:>16dB Output Resistance:75Ω |
| Transmission | PHY Layer: 600Mbps Throughput on MAC Layer: 320Mbps | |
| Modulation Mode | OFDM~ 2690~carriers 4096,1024,256,64,16,8~QAM, QPSK, BPSK, ROBO | |
| Working Mode | TDMA/CSMA | |
| Encryption Mode | AES-128 | |
| Standard | EOC Standard | IEEE P1901(Draft) HomePlug AV |
| Ethernet Standard | IEEE 802.3, IEEE 802.3x, IEEE 802.3u IEEE802.1P, IEEE802.1Q | |
| Software | Network Management | WEB, CLI, SNMP |
| Software Features | VLAN, QOS, Bandwidth Control, Broadcast storm limitation | |
| Physical Features | Power supply & Consumption | Power Supply:220V/60V optional |
| Size & Net weight | Dimension:190mm×137mm×98mm |
